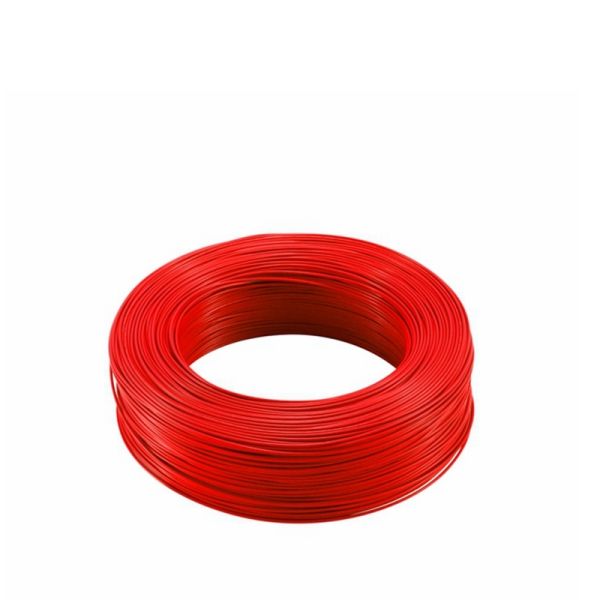

UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications

Model Number : UL8298

Brand Name : MYSUN

Place of Origin : Guangdong, China

MOQ : 3050

Conductor Material : Tinned Copper

Diameter : 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 20 AWG, 22 AWG, 24 AWG, 26AWG

Insulation Material : PFA

Rated Voltage : 450V, 750V

Conductor Type : Solid

Shape : Round

Temperature Rating : 250℃

Conductor Resistance : 59.78 Ω/KM (0.34mm2), 40.1 Ω/KM (0.50mm2), 26.7 Ω/KM (0.75mm2), 20 Ω/KM (1.00mm2), 14.35 Ω/KM (1.25mm2), 13.7 Ω/KM (1.50mm2), 8.78 Ω/KM (2.00mm2), 7.16 Ω/KM (2.50mm2)

Unit Length : 305/1000 M/FT

Conductor Construction : 7/0.15 (0.34mm2), 7/0.19 (0.50mm2), 19/0.23 (0.75mm2), 19/0.26 (1.00mm2), 19/0.29 (1.25mm2), 19/0.32 (1.50mm2), 19/0.37 (2.00mm2), 19/0.41 (2.50mm2)

Insulation Thickness : 0.305mm (0.34-1.50mm2), 0.350mm (2.00-2.50mm2)

Wire Diameter : 1.36mm (0.34mm2), 1.56mm (0.50mm2), 1.78mm (0.75mm2), 1.91mm (1.00mm2), 2.16mm (1.25mm2), 2.31mm (1.50mm2), 2.55mm (2.00mm2), 2.76mm (2.50mm2)

Conductor Diameter : 0.75mm (0.34mm2), 0.95mm (0.50mm2), 1.17mm (0.75mm2), 1.31mm (1.00mm2), 1.46mm (1.25mm2), 1.61mm (1.50mm2), 1.85mm (2.00mm2), 2.06mm (2.50mm2)

Voltage Rating : 450/750V

Insulation Type : PFA

Contact Now

Supplies Fortune 500 Companies Top PFA Wire Supplier In China.
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
UL8298 PFA Wire with Solid Conductor and Round Shape for Medical Equipment and High-Temperature Applications
Specification
UL8298
UL1330
Conductor


Insulation

Max.Cond Resistance（Ω/KM）
Unit length
（M）（Ft）
Size
（mm2）
Construction
（No.mm）
Diameter（mm）
Nominal thickness
（mm）
Diameter（mm）


0.34
7/0.15
0.75
0.305
1.36
59.78
610/2000
0.50
7/0.19
0.95
0.305
1.56
40.1
305/1000
0.75
19/0.23
1.17
0.305
1.78
26.7
305/1000
1.00
19/0.26
1.31
0.305
1.91
20
305/1000
1.25
19/0.29
1.46
0.305
2.16
14.35
305/1000
1.50
19/0.32
1.61
0.305
2.31
13.7
305/1000
2.00
19/0.37
1.85
0.350
2.55
8.78
305/1000
2.50
19/0.41
2.06
0.350
2.76
7.16
305/1000
